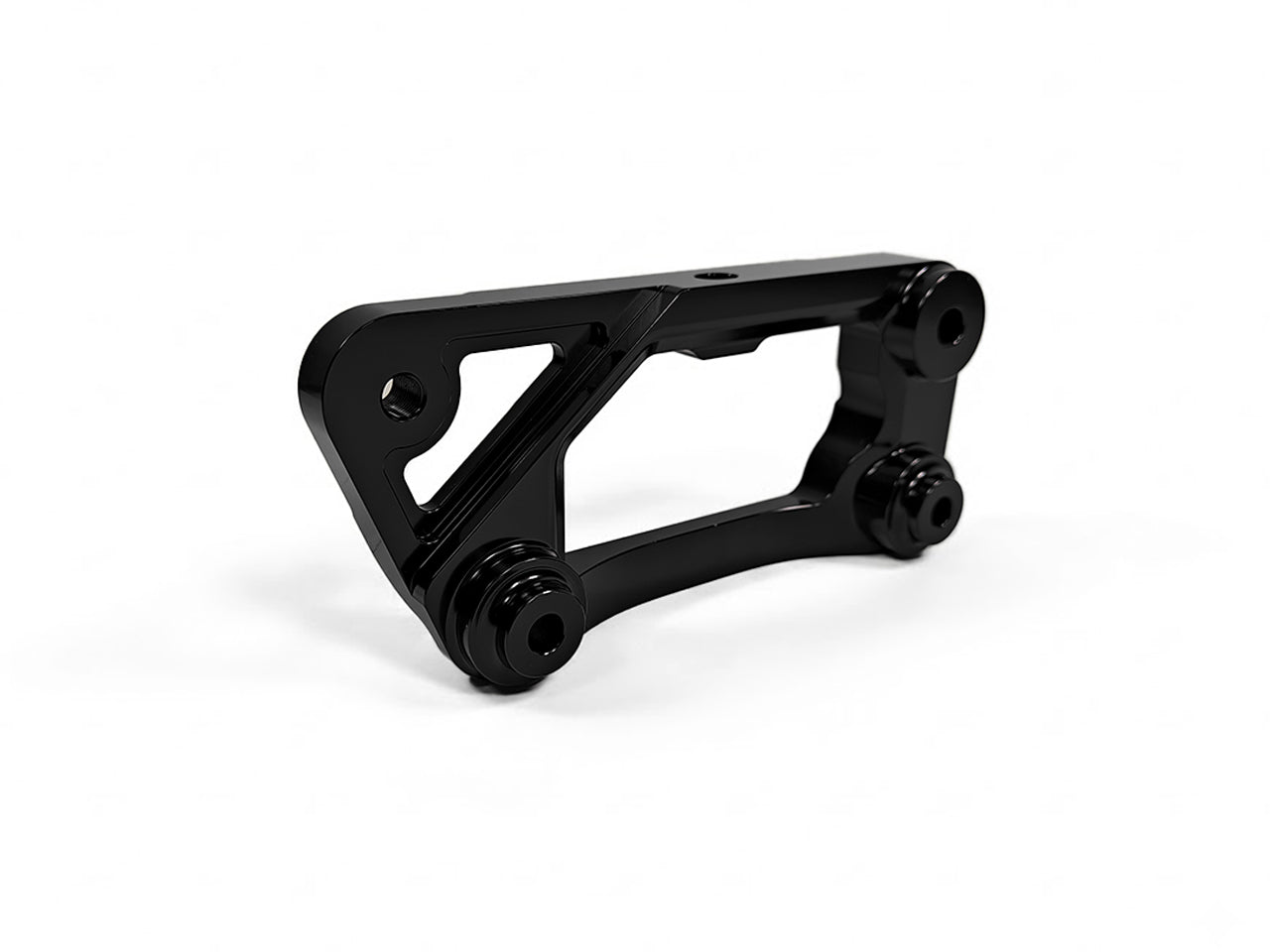

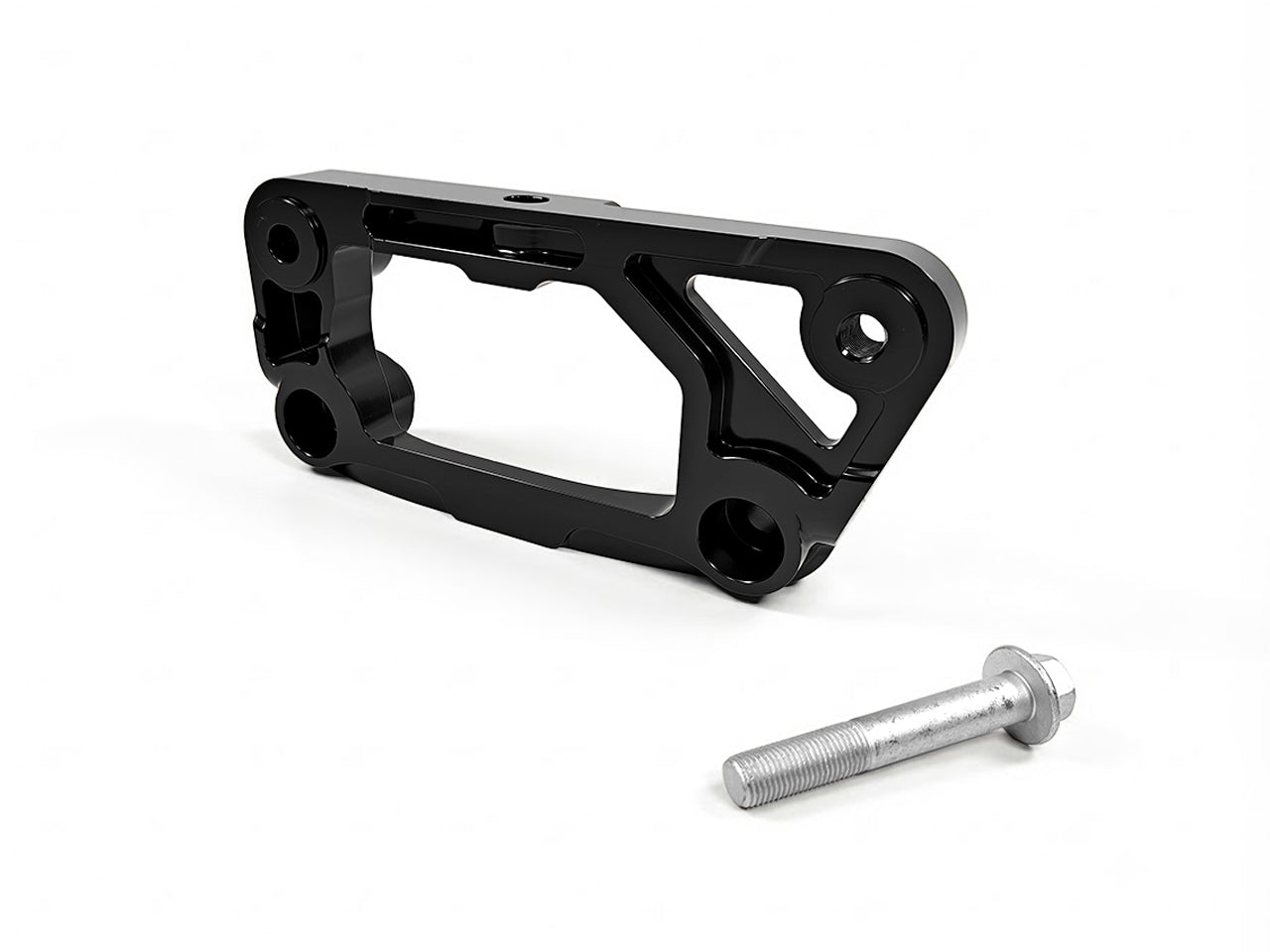

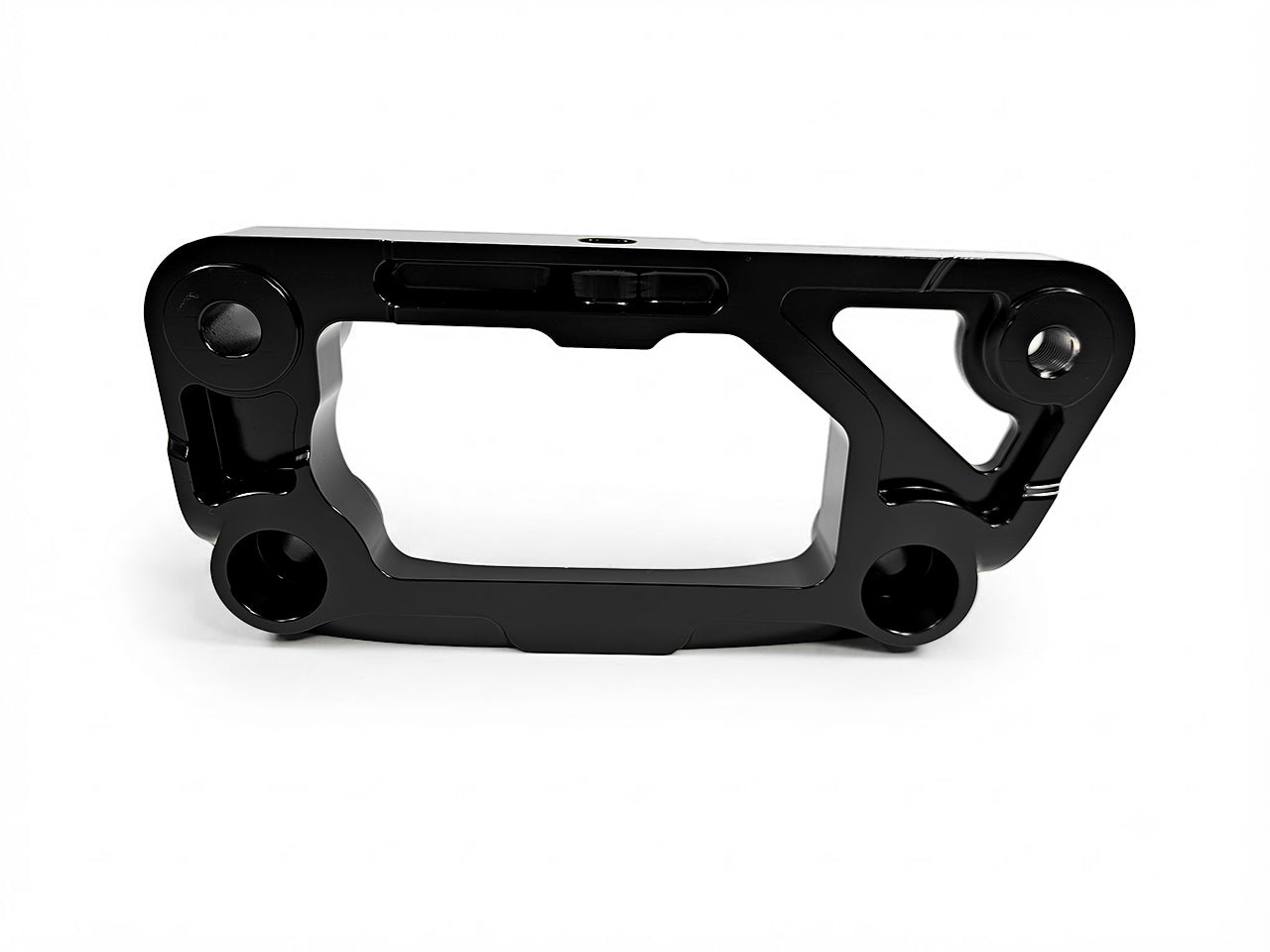

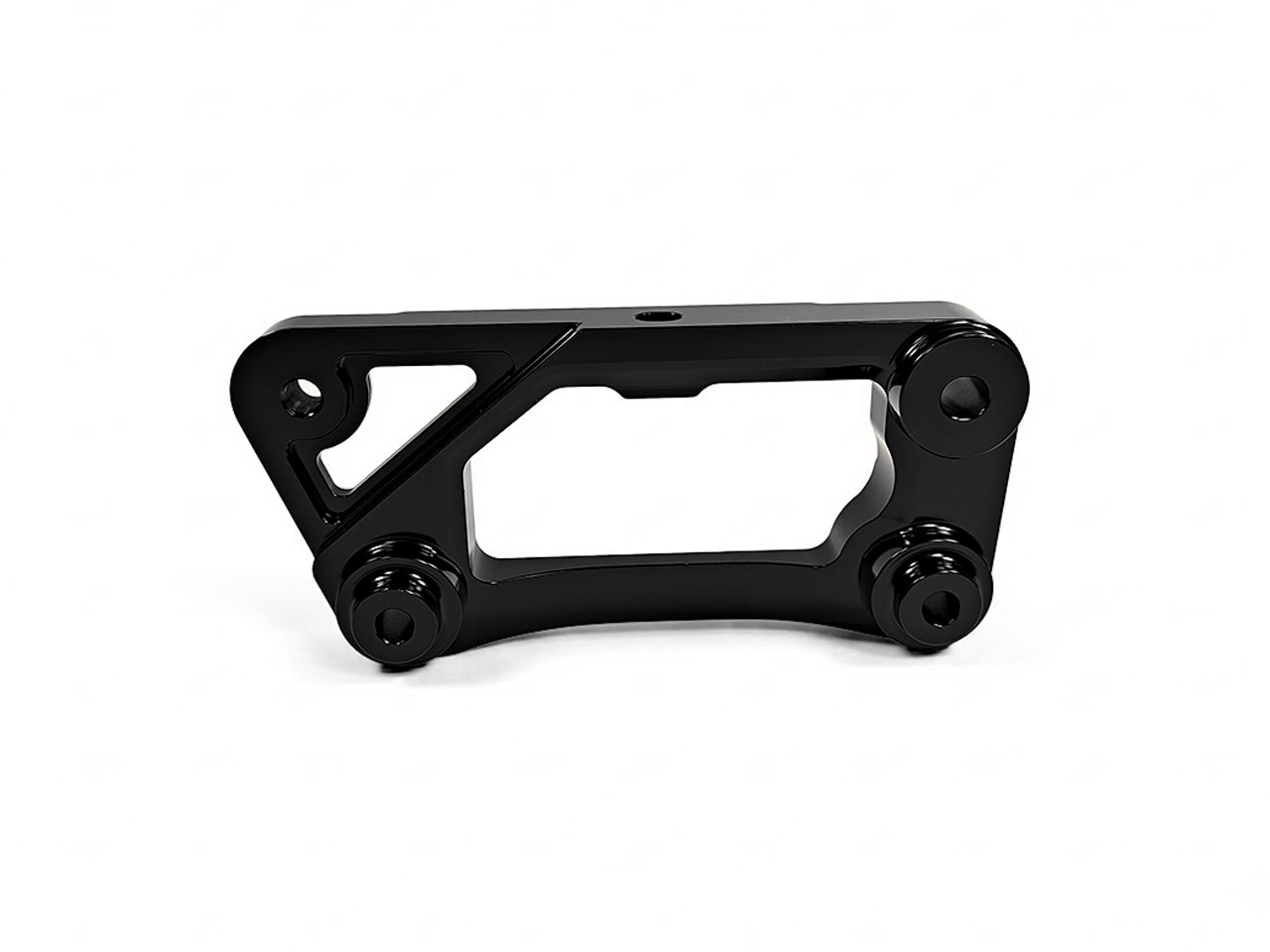

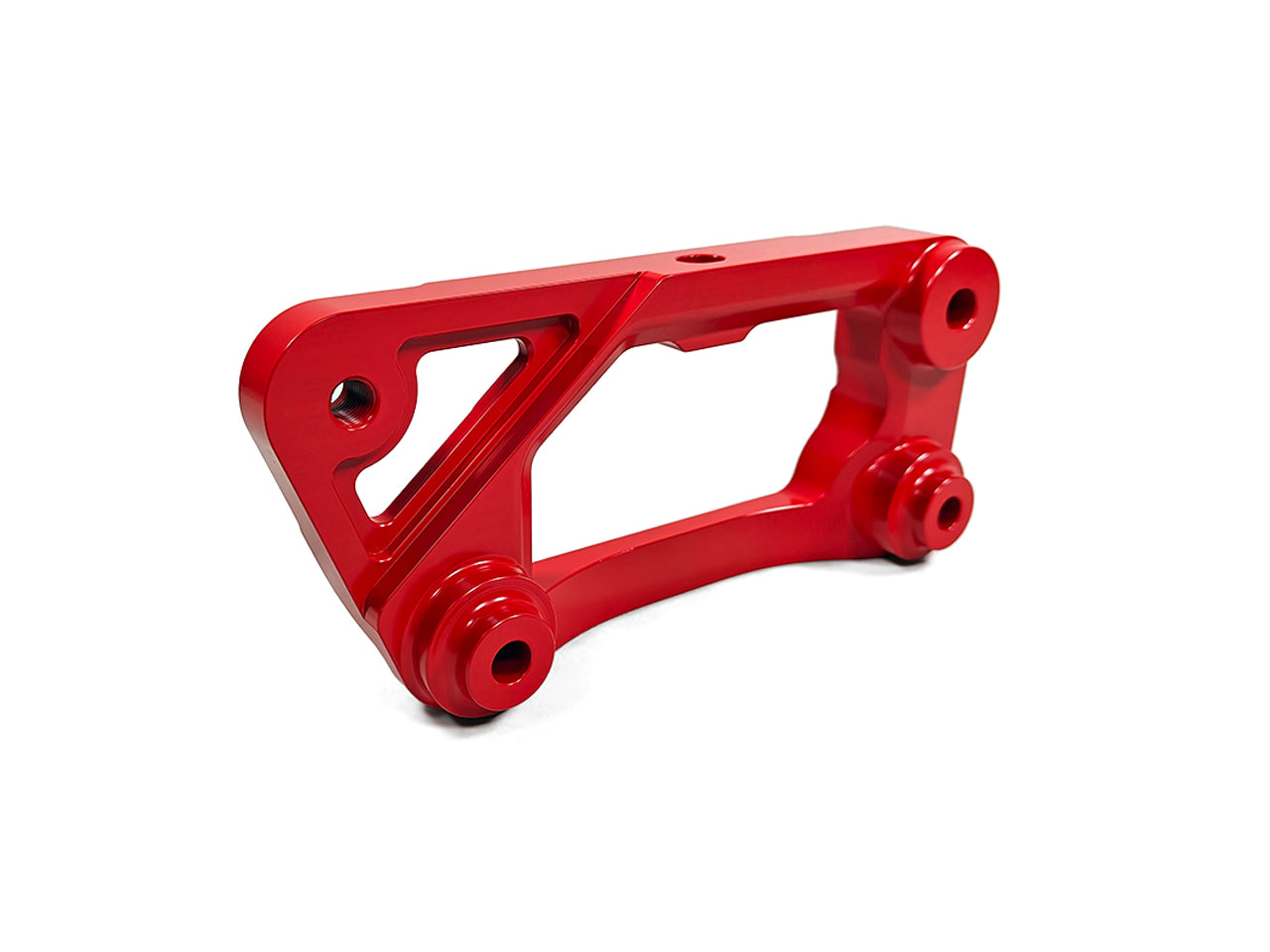

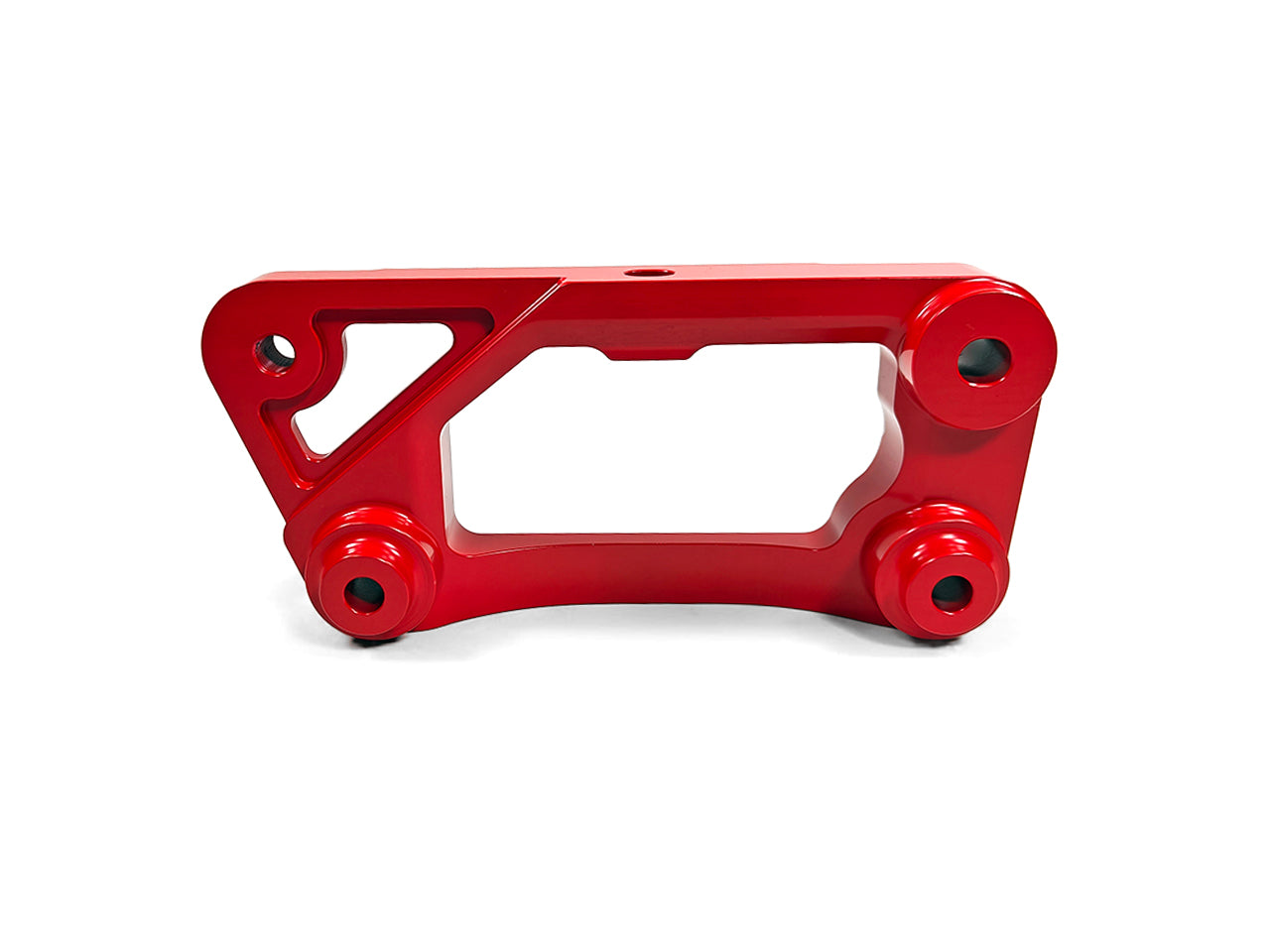

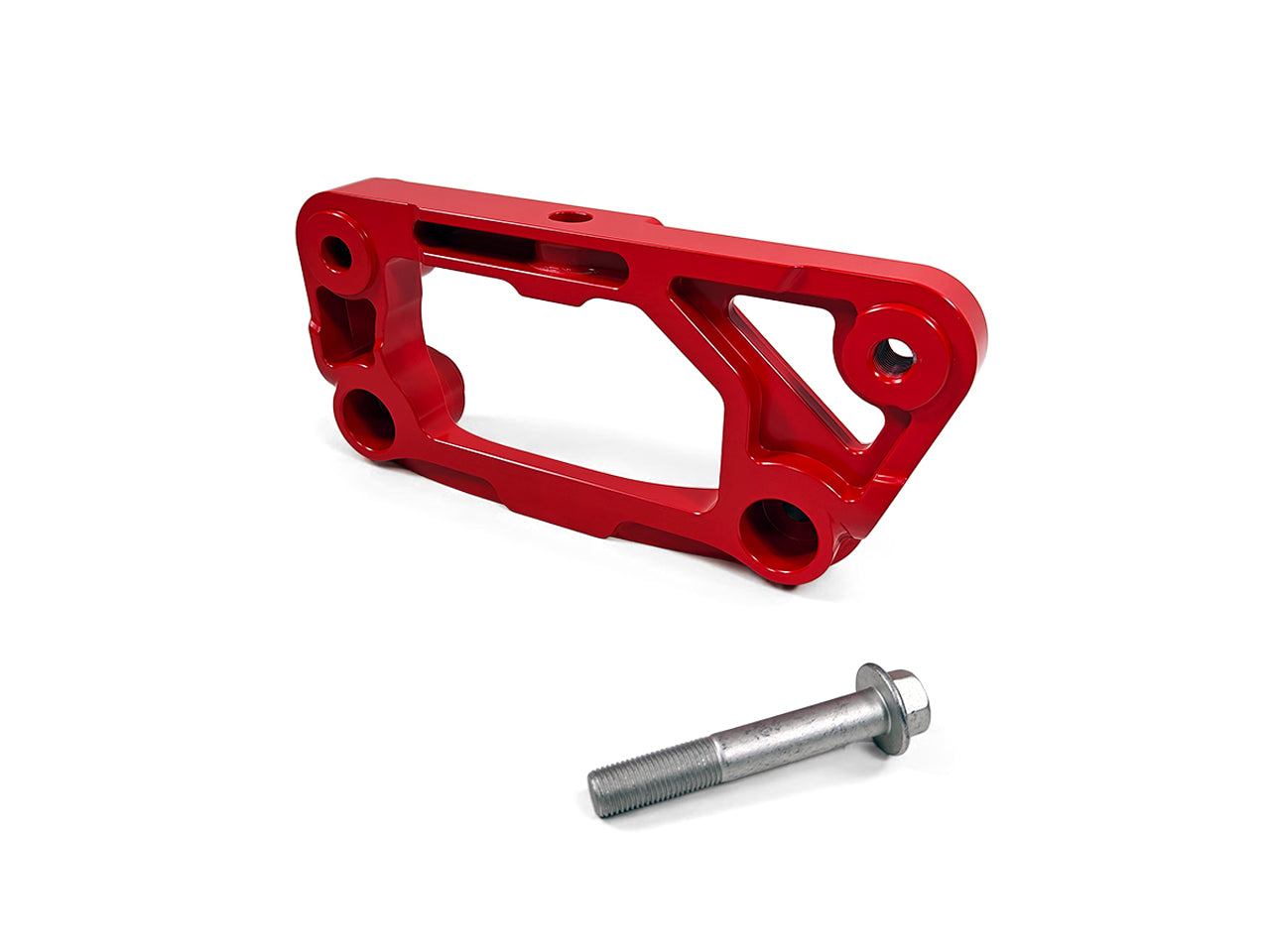

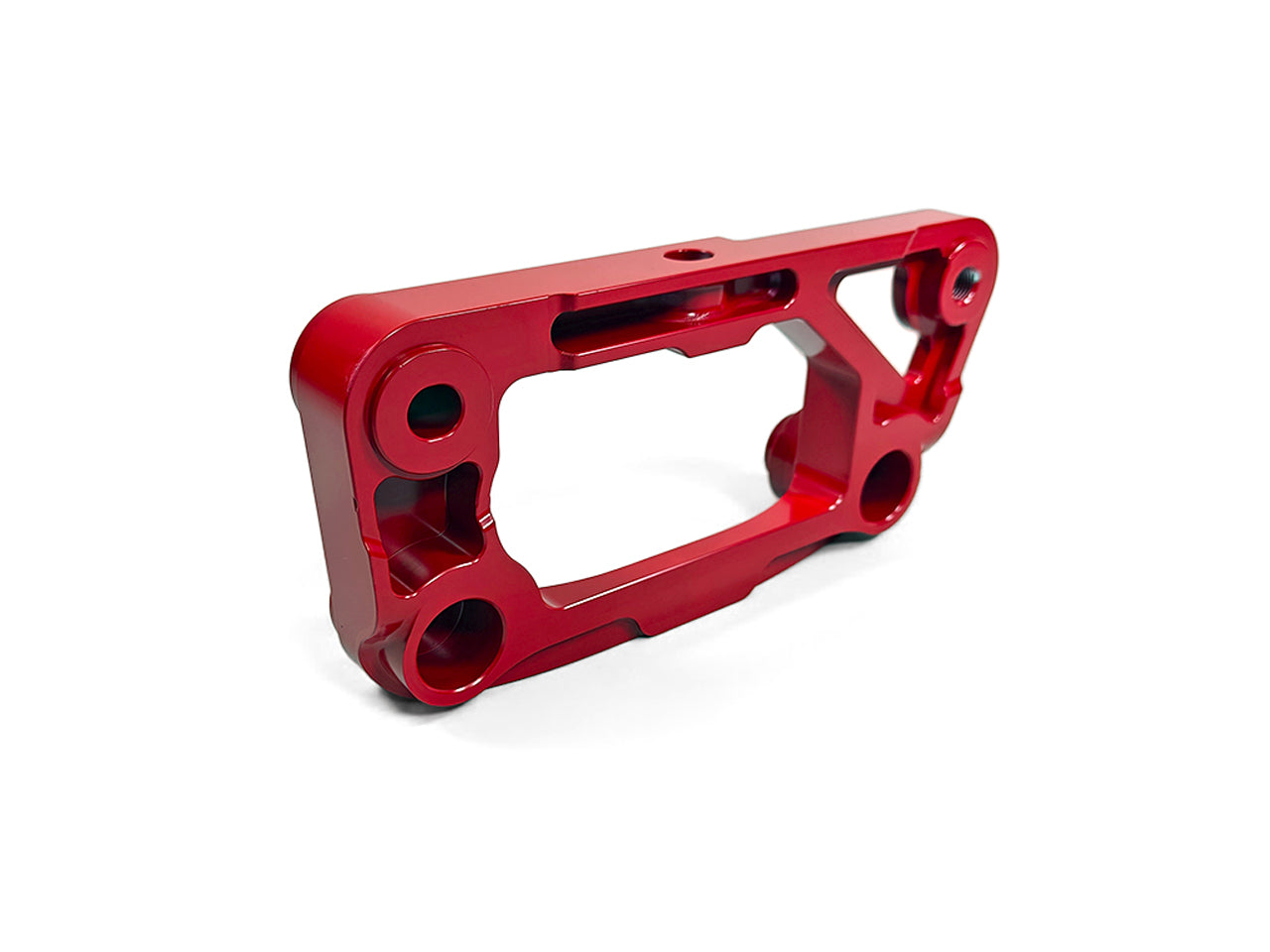

BMW F8X M2/M3/M4 Dual Mount Differential Support Bracket/Brace

The Circuit Werks Billet Aluminum Dual Mount Rear Differential Bracket eliminates this driveline deflection by enabling the use of a second rear subframe bushing. Engineered to replace the factory single-mount plate, this upgrade locks the differential in place for maximum stability, crisper throttle response, and more direct power transfer to the ground.

With the F80 M3, F82/F83 M4, and F87 M2 making serious power straight out of the box, it’s no surprise these chassis are staples at track days and performance tuning shops worldwide. However, high torque outputs quickly reveal a major weak point in the factory rear suspension geometry: the rear differential mounting setup.

Despite designing the tubular rear subframe with dual mounting provisions, BMW implemented only a single rear offset bushing to secure the diff bracket. This single mount creates a pivot point under heavy acceleration and hard shifting, leading to excessive differential movement, aggressive wheel hop, and premature bushing failure.

Features:

• Dual-Mount Design: Utilizes the unused factory subframe provision to add a second mounting point, locking down the rear differential.
• High-Strength Billet Aluminum: Precision CNC-machined from 6061-T6 billet aluminum for high durability without adding excessive weight.
• Reduces Wheel Hop & Flex: Minimizes driveline movement and differential twisting under hard launch and high torque conditions.
• Direct Bolt-On Fitment: Replaces factory single-mount OEM bracket using factory mounting locations.

Vehicle Compatibility:

• 2 Series
  F87 (2016-2021)  M2 CS Racing
  F87 (2016-2021)  M2 Competition S55 (2019-2021)
• 3 Series
  F80 (2015-2018)  M3 (2015-2018)
• 4 Series
  F82 / F83 (2015-2020)  M4 (2015-2020)
  F82 / F83 (2015-2020)  M4 GT4
  F82 / F83 (2015-2020)  M4 GTS

(Note: Requires the addition of a second OEM or aftermarket polyurethane/solid rear differential bushing for dual-mount operation.)
